Ogre Procedural is an Ogre3D based library enabling developpers to quickly create geometric primitives, such as cubes, spheres, cylinders...

Autor: Mikachu (Michael Broutin)
Licence: MIT License

Source code and downloads you find on the project page.
If you have questions, just use this forum topic.

Features

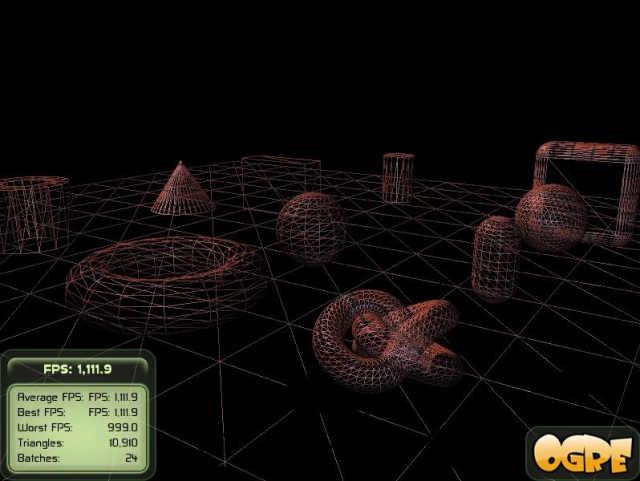

It can build the following primitives :

• Box, RoundedBox
• Plane
• Sphere, IcoSphere
• Cylinder, Tube, Capsule
• Cone
• Torus, Torus knot

Planned:

• extrusion and revolution based meshes
• a plug-in for the scene editor Ogitor

Download

Downloads are available in the download section of the project page.

Precompiled binaries are provided for VS2010 and for CB+MingW (linux support may come later, but I don't have a Mac...)
Source package is also available for all platforms (CMake based project files)

Usage Examples

Create a sphere:

//Initialisation
Procedural::Root::getInstance()->sceneManager = mSceneMgr;
//Create a sphere
Procedural::SphereGenerator().setRadius(5.f).setUTile(.5f).generate("mySphere");
mSceneMgr->createEntity("mySphere");

Create a pipeline:

Procedural::Path p = Procedural::BezierPath().addPoint(0,5,0).addPoint(0,4,10).addPoint(10,5,10).close().realizePath();
Procedural::Shape s = Procedural::CircleShape().setRadius(1.5).realizeShape();
Procedural::Extruder().setExtrusionPath(&p).setShapeToExtrude(&s).realizeMesh("extrudedMesh");

How to build

This is a list of basic steps to compile ogre-procedural from source.
Prerequisites:

• Install Cmake
• Install Ogre, either from source or precompiled SDK (1.7 or 1.8)
• If you are using MS Windows, make sure that there's an evironnement variable OGRE_HOME set to your ogre SDK directory

Compiling and running the sample:

• Generate project files using Cmake
• Compile, run, and enjoy 😊 ...
